Somewhere between the open-column look of a cantilever shade and the architectural curve of an arch sits the top support design — probably the most commonly specified parking shade in the UAE, and for a practical reason: it's cost-effective to build at scale without giving up structural strength. Professionals Tents & Shades LLC supplies and installs top support car parking shades across Dubai, Abu Dhabi, and the rest of the UAE, for everything from single villa driveways to large multi-row commercial lots where dozens of bays need covering under one consistent system.

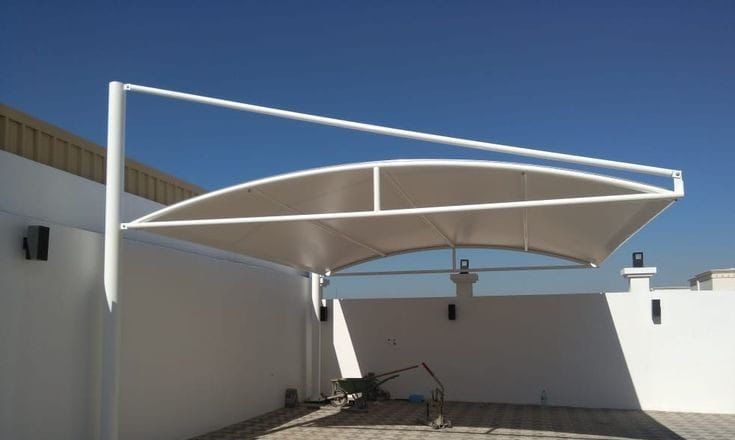

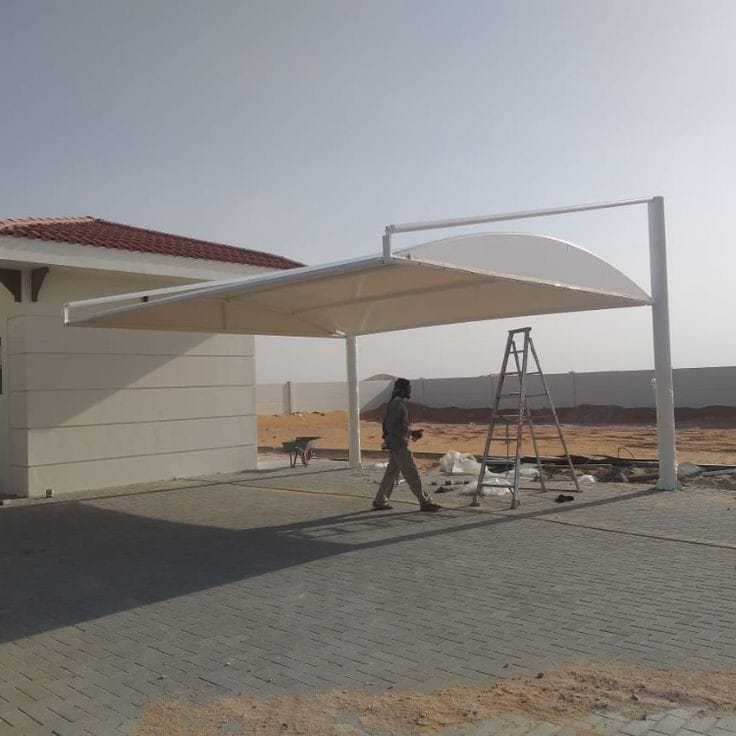

A top support shade places its columns directly within the parking layout rather than off to one side, usually at the corners or shared points between adjacent bays. That shared-column approach is what keeps the design economical — a double-bay unit needs far fewer total posts than covering the same two bays with separate structures. The trade-off is a support post somewhere near the edge of each bay, which matters less in open lots than it would in tight villa driveways, where a cantilever or arch design is sometimes the better fit instead.

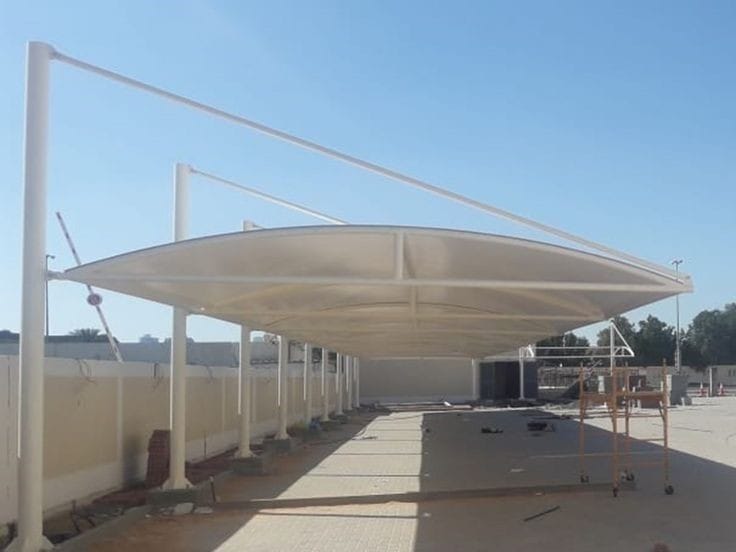

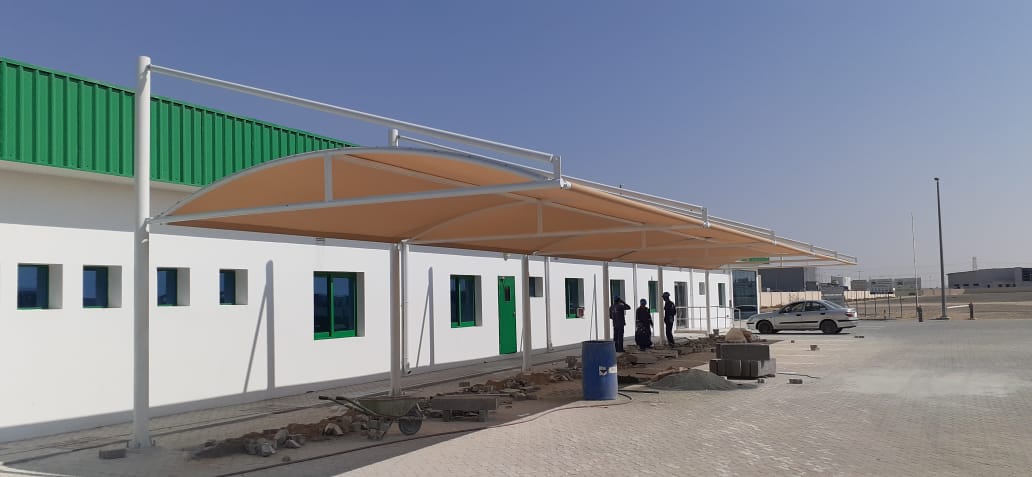

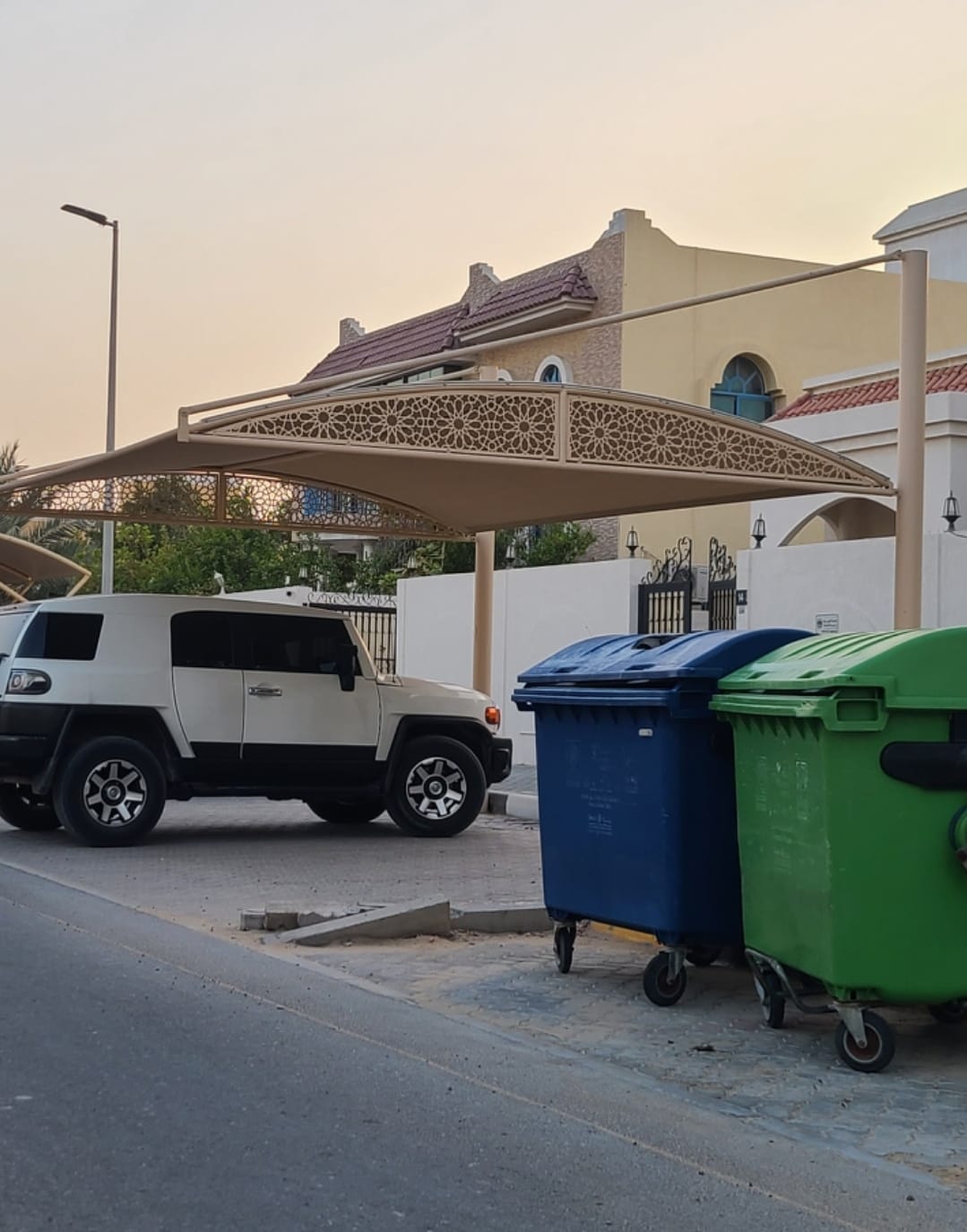

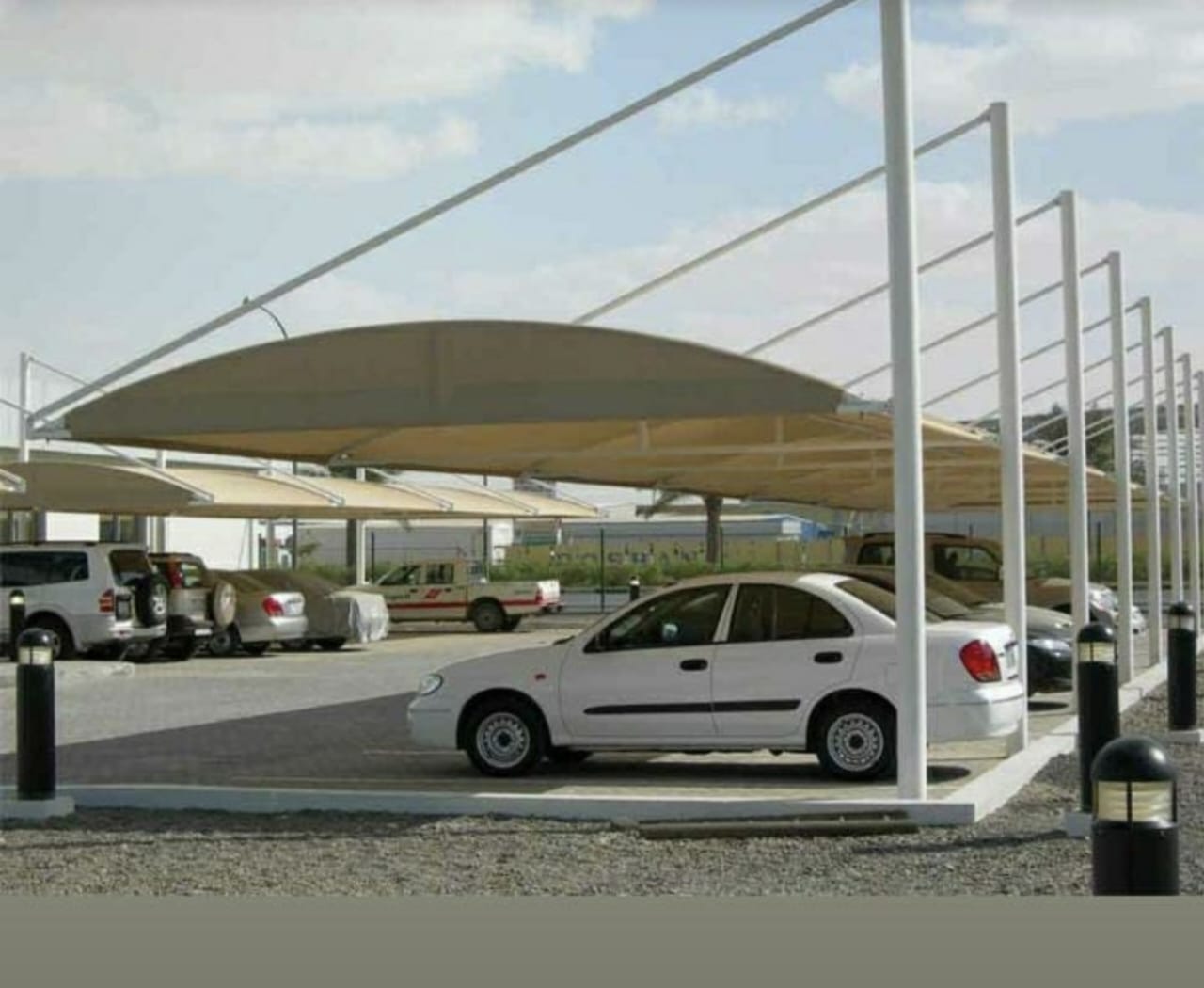

The two designs we build most often are the pyramid top support, with a peaked canopy that channels rainwater to the corners, and the hip/gable top support, which runs a straighter ridge line across longer multi-bay rows. Single-bay units suit driveways and small lots; multi-bay runs are where the shared-column economics really pay off, since one continuous structure can cover ten or twenty cars off a fraction of the posts a cantilever layout would need. Bay width, post spacing, ridge height, and fabric colour all get set to the site rather than pulled from one fixed template — a showroom forecourt and a staff parking yard rarely call for the same proportions.

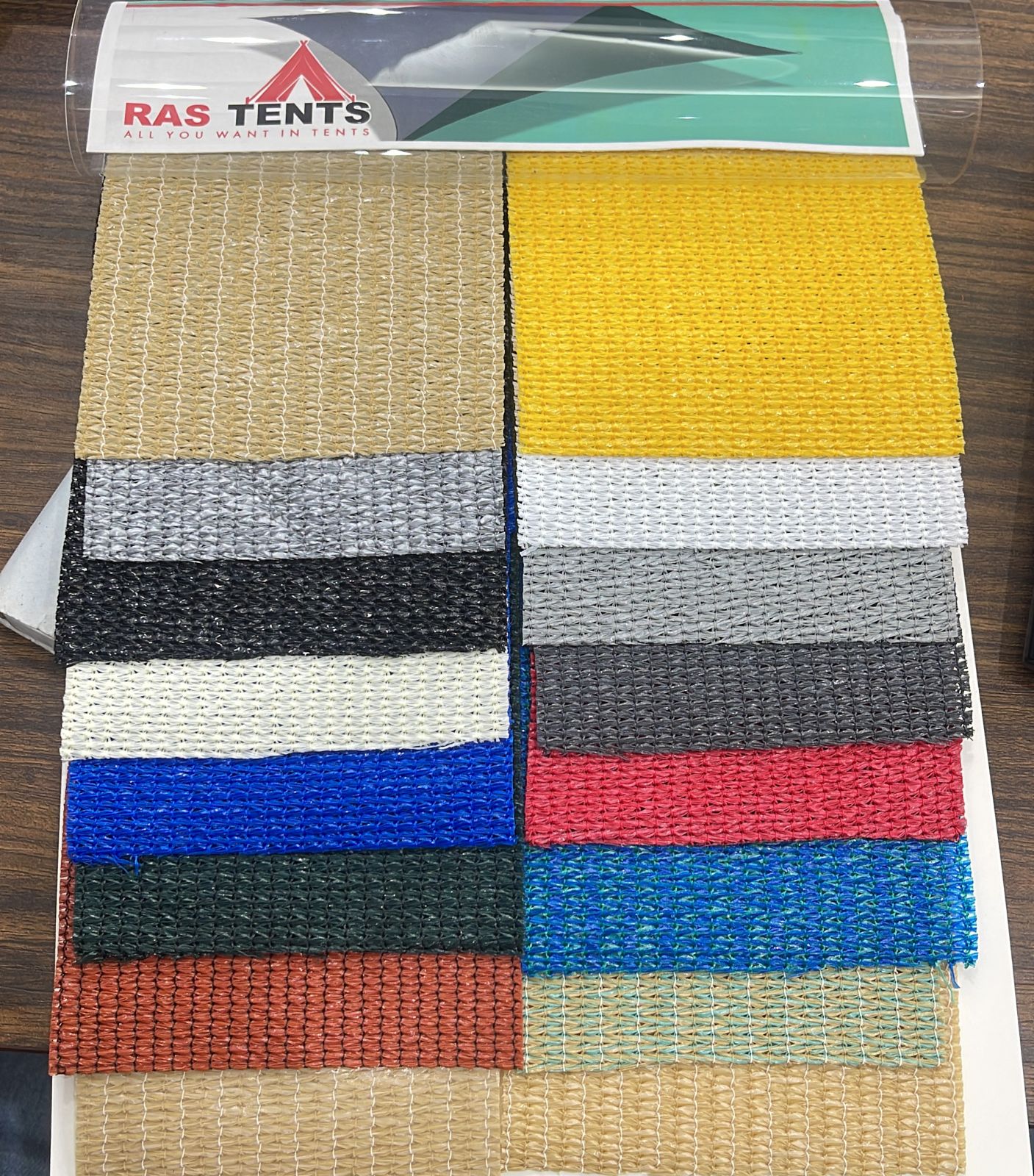

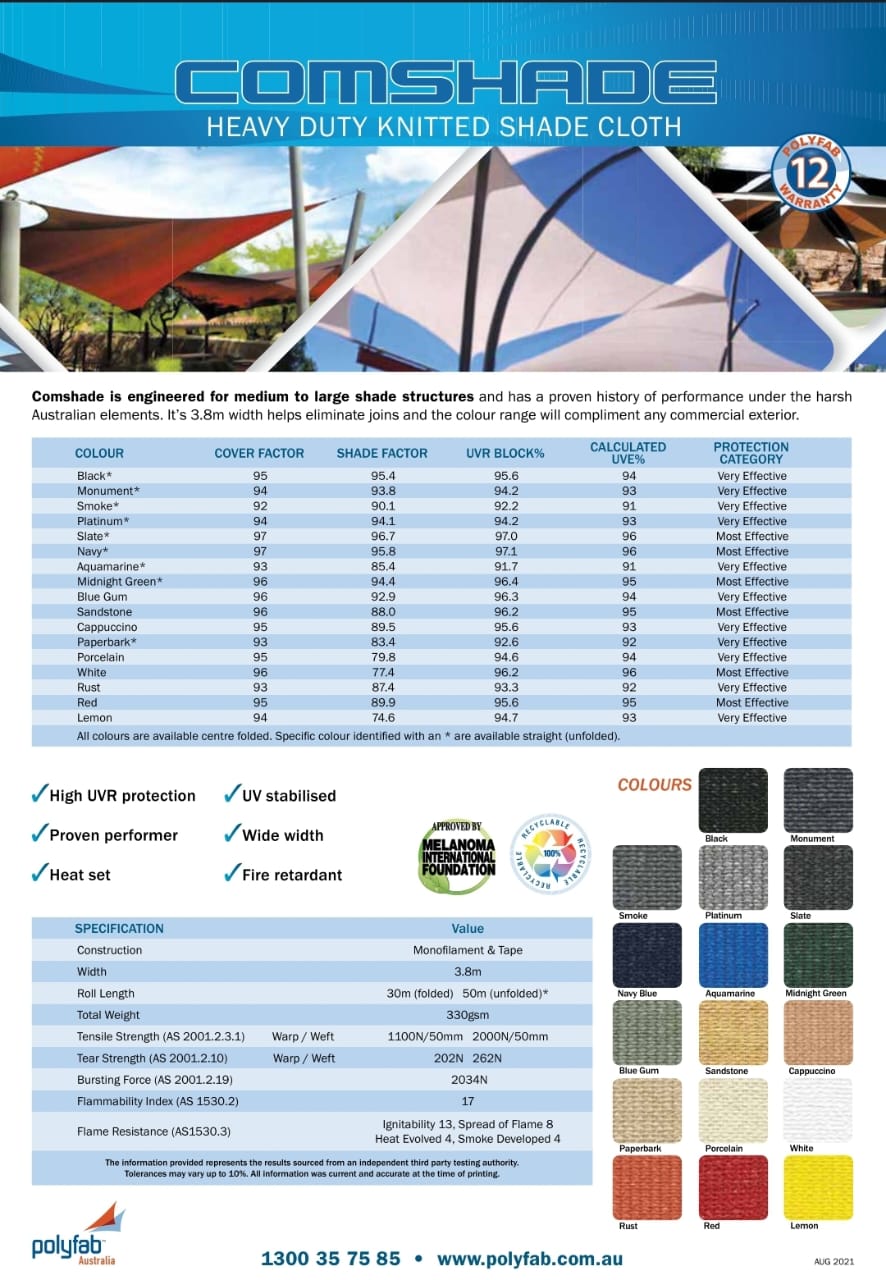

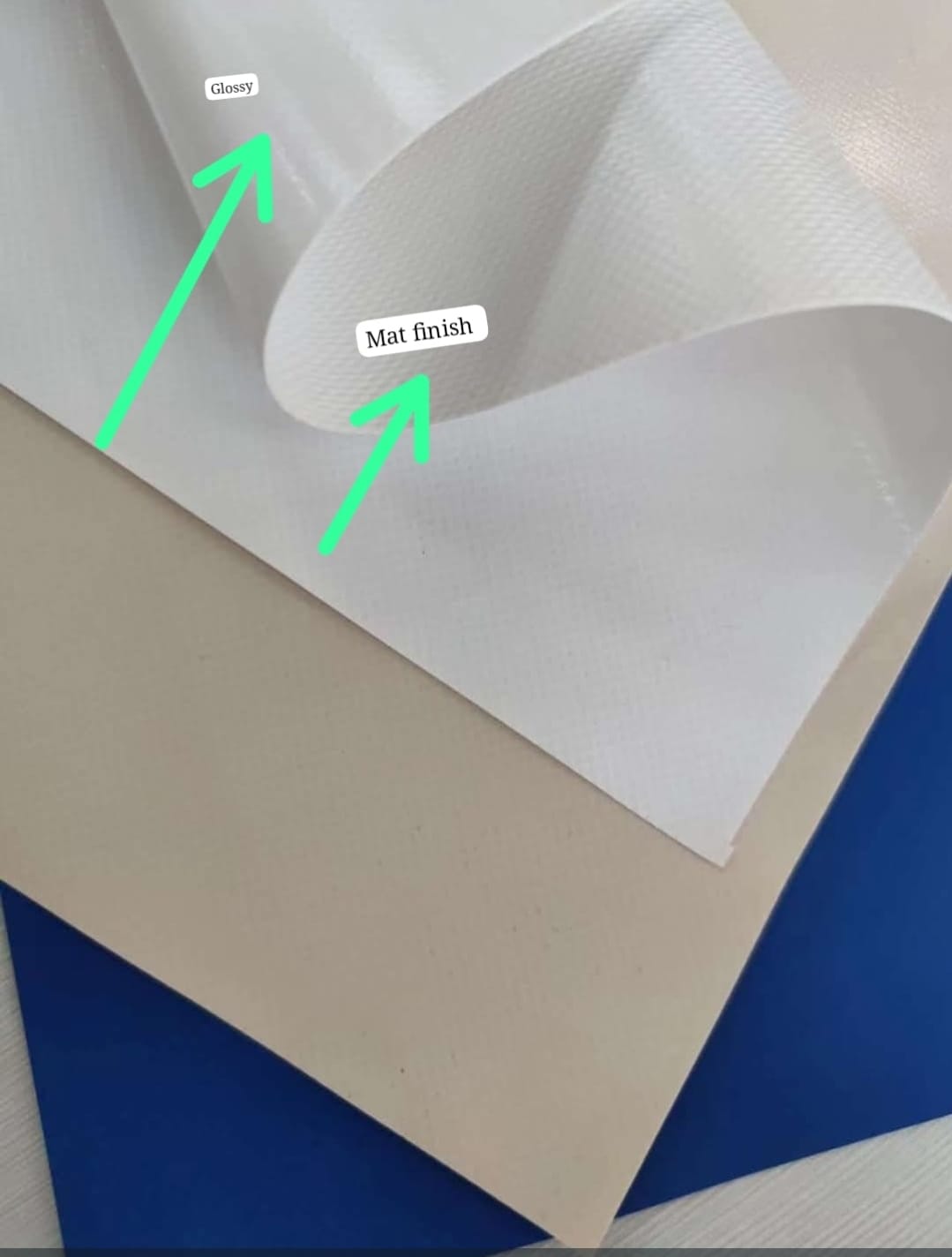

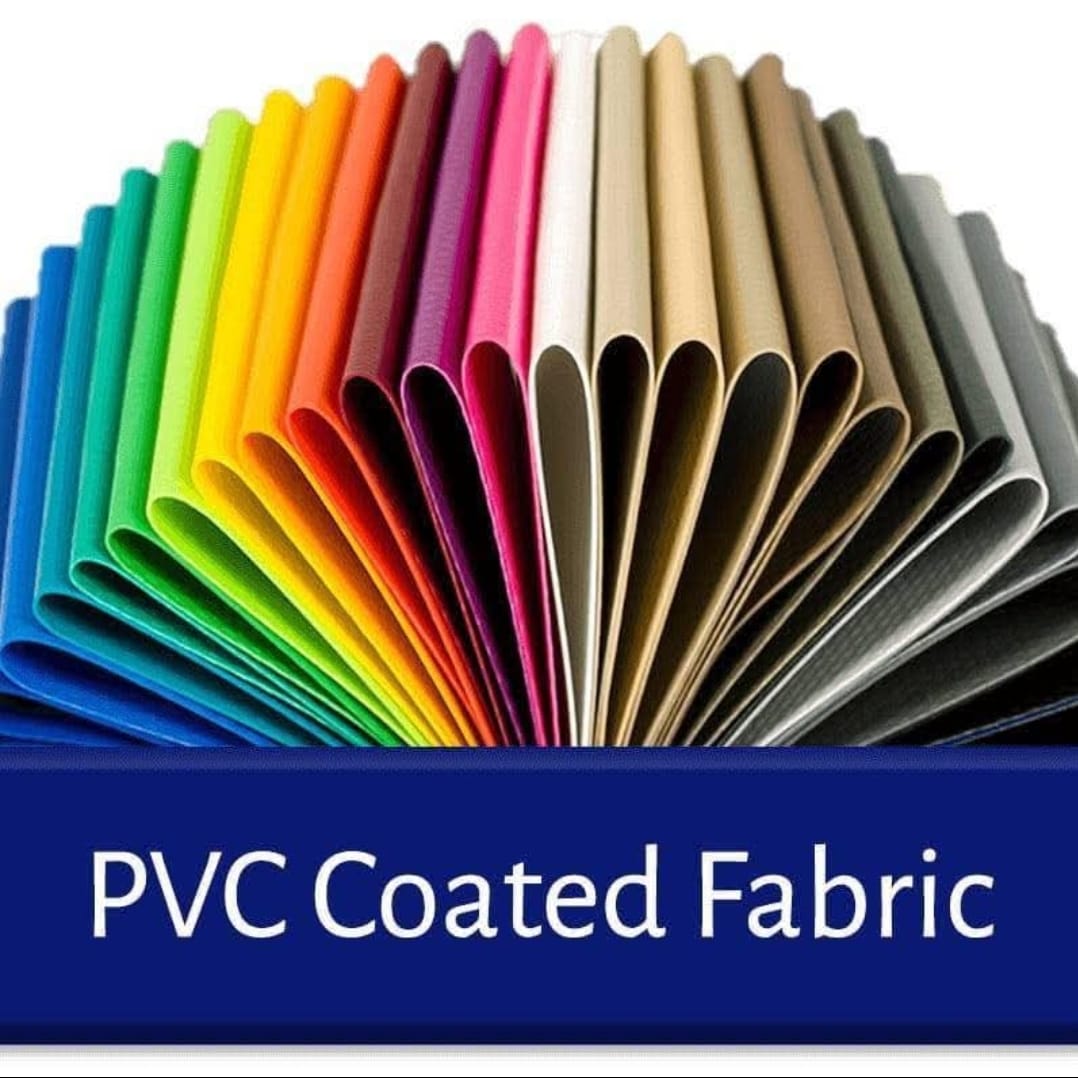

Posts and frame members are built from T6 aluminium or hot-dip galvanized steel, joined with heavy-duty galvanized connectors rather than standard fittings that give out under UAE humidity. For the canopy, PVC (850 GSM) with a PVDF top coat is the common choice — fully waterproof, UV-stabilised, and easy to keep clean against sand and dust. HDPE mesh is the alternative for sites where ventilation matters more than complete waterproofing, since the knitted structure lets heat escape rather than trapping it under a solid sheet.

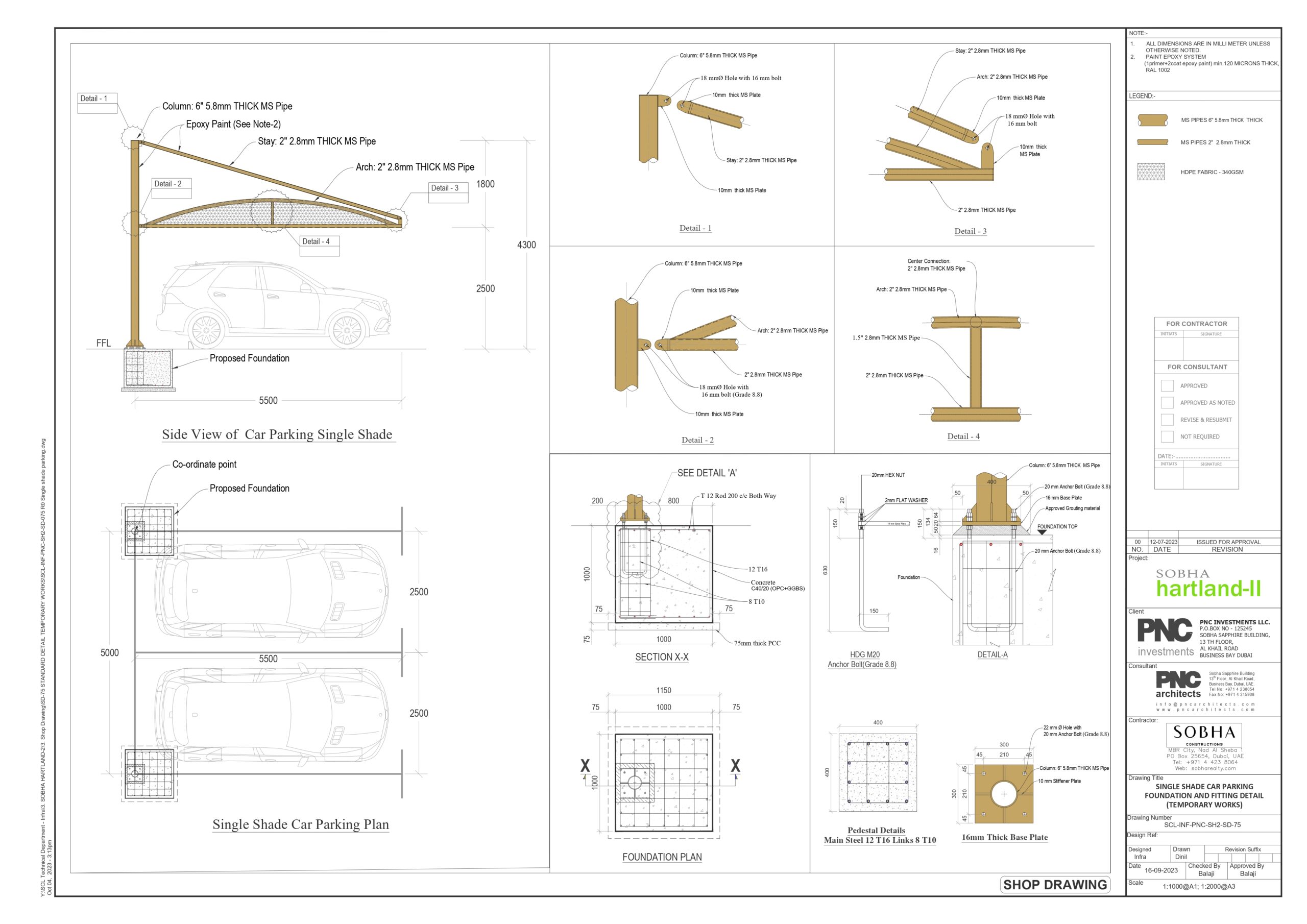

Post spacing and canopy pitch get worked out from the actual bay layout before fabrication starts, since a top support structure's economics depend on getting the shared-column geometry right the first time. Frames are hot-dip galvanized or powder-coated in-house, and fabric panels are cut and welded to the specific canopy pitch rather than a generic pattern stretched to fit.

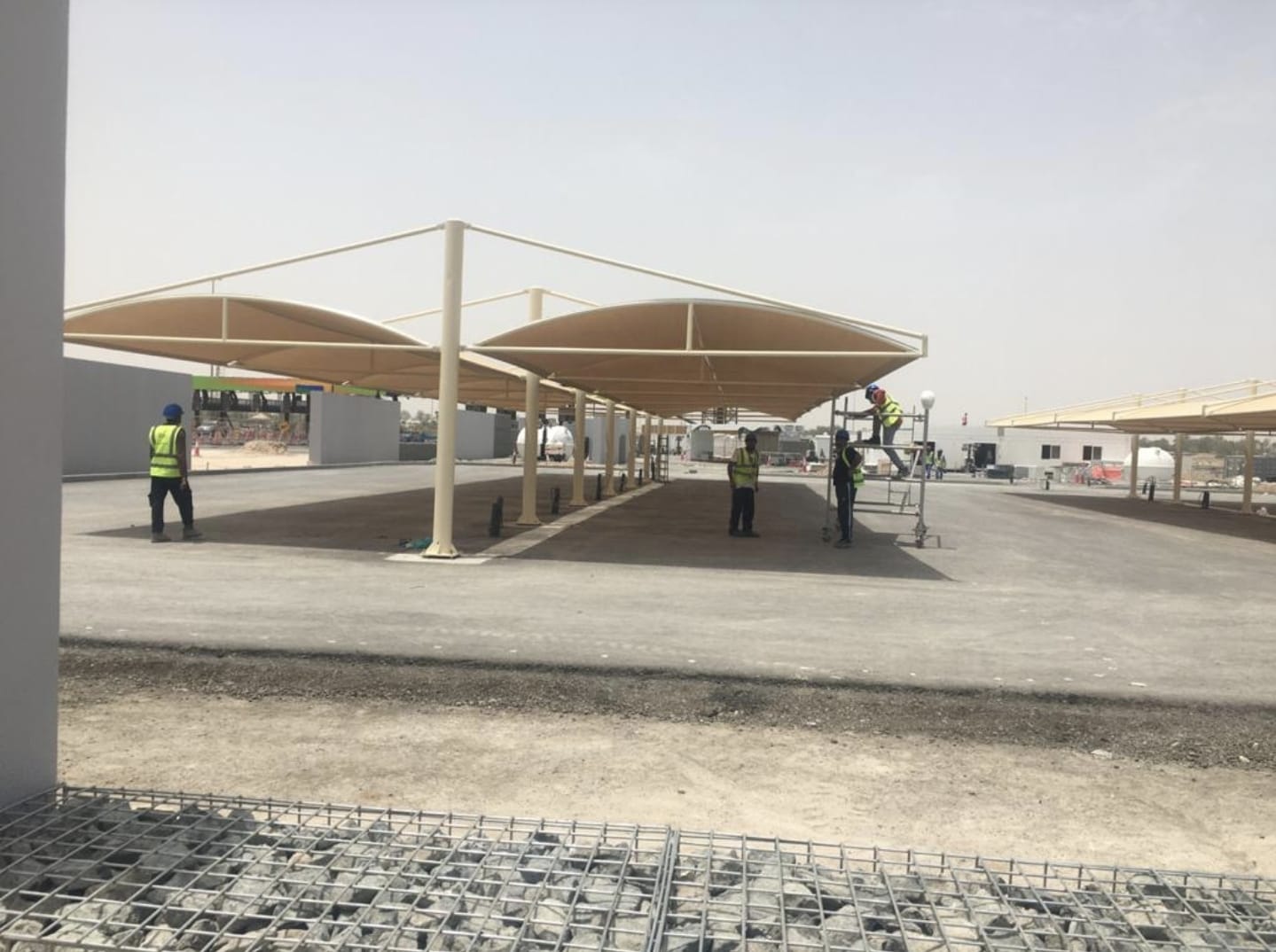

On site, the process runs the way it should for any post-founded structure — ground conditions and post positions get surveyed first, footings are cast to the load each post will actually carry, and the frame goes up section by section, checked for alignment before anything is fixed permanently. Fabric gets tensioned last, with the canopy's pitch doing the work of shedding water toward the drainage points built into the design. A final walk-through of welds, bolts, and tension happens before the job is signed off.

The shared-post layout means lower material cost per bay covered compared to cantilever designs, without sacrificing the wind and UV performance a parking shade actually needs to do its job. It also scales cleanly — adding another bay to an existing multi-bay run is usually simpler than extending a cantilever system, since the structural logic repeats rather than requiring a new independent span each time. That combination is why top support shades show up so often at shopping centres, hospitals, labour accommodation parking, government compounds, and residential communities with large shared lots.

We calculate post spacing and load distribution for the actual site rather than defaulting to a standard bay module that might waste material or under-engineer the wind rating. Fabrication stays under our own supervision, and our own crew installs on site, so there's no handoff between whoever designed the structure and whoever's anchoring the footings. If a layout needs adjusting mid-project — a lot's boundary shifts, or a client wants an extra bay added — that conversation happens with the same team throughout.
