Pagoda tents
Pagoda tent is has a high peak dome on top. The size can be 3x3m, 4x4m, 5x5m, 6x6m, 8x8m, 10x10m, which are 10x10ft, 13x13ft, 17x17ft, 20x20ft, 27x27ft, 33x33ft. Pagoda’s unique appearance make it can used in many occasion: home garden, exhibition, trade show, event, small party. Whatever install one pagoda tent alone or assemble all together with rain gutter, it has different charming. Besides square pagoda tent, we also have hexagon tent.
It is easy to set up and take down. You can check the installation video page on our website.

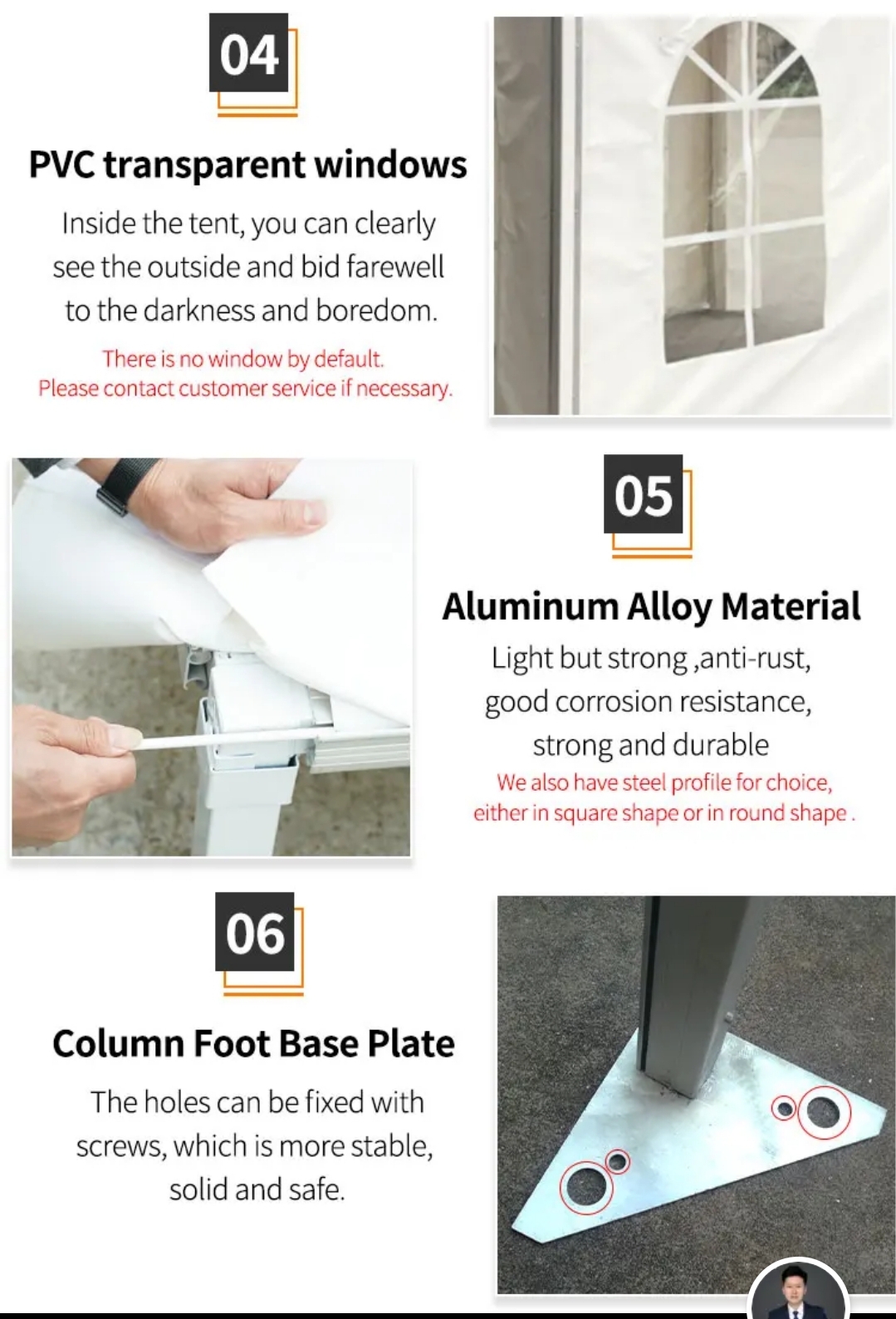

Accessories available for pagoda tent: lining & curtain, glass wall, glass door, ABS panel wall, Cassette wooden flooring system, ground anchor.
Previous slide
Next slide

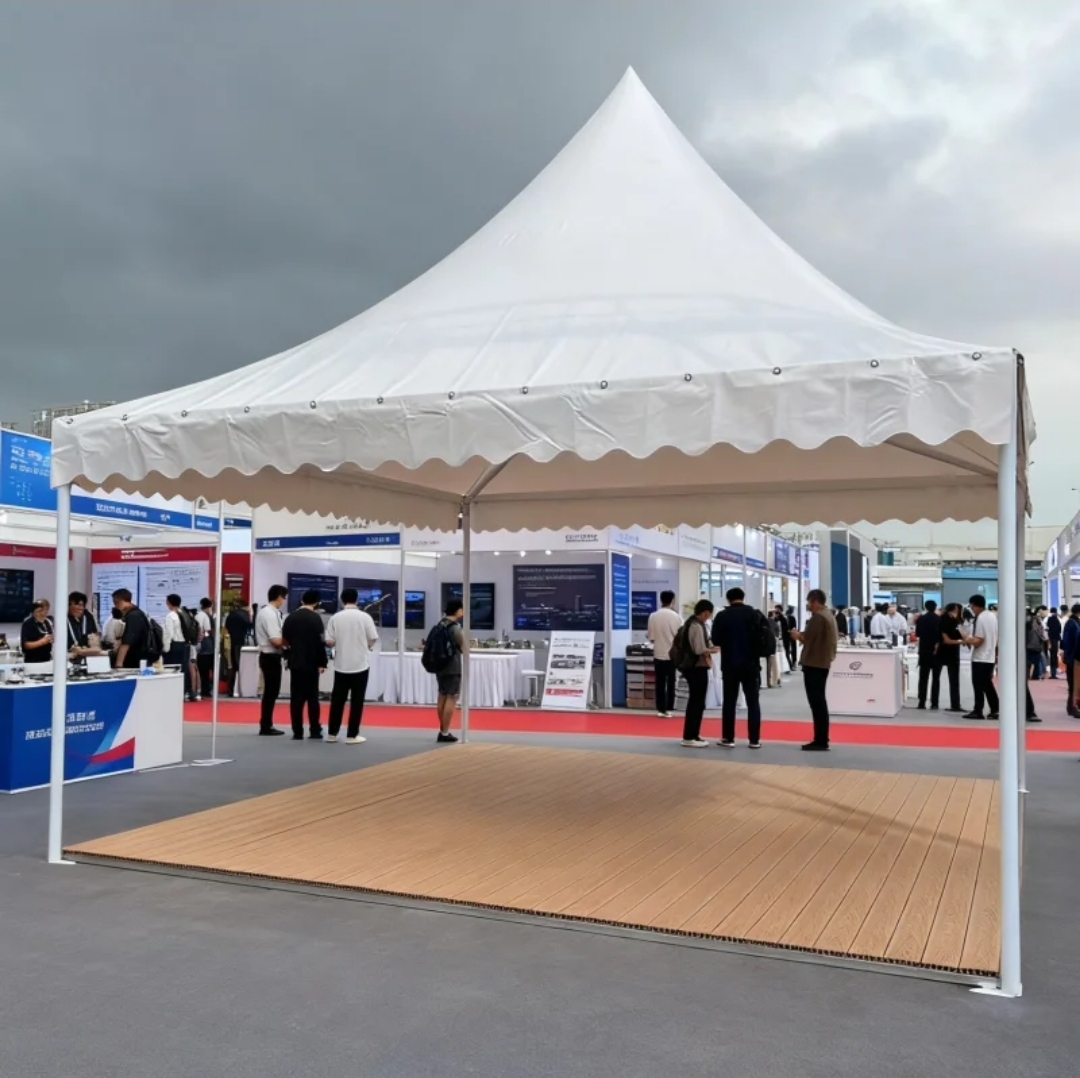

Application Case

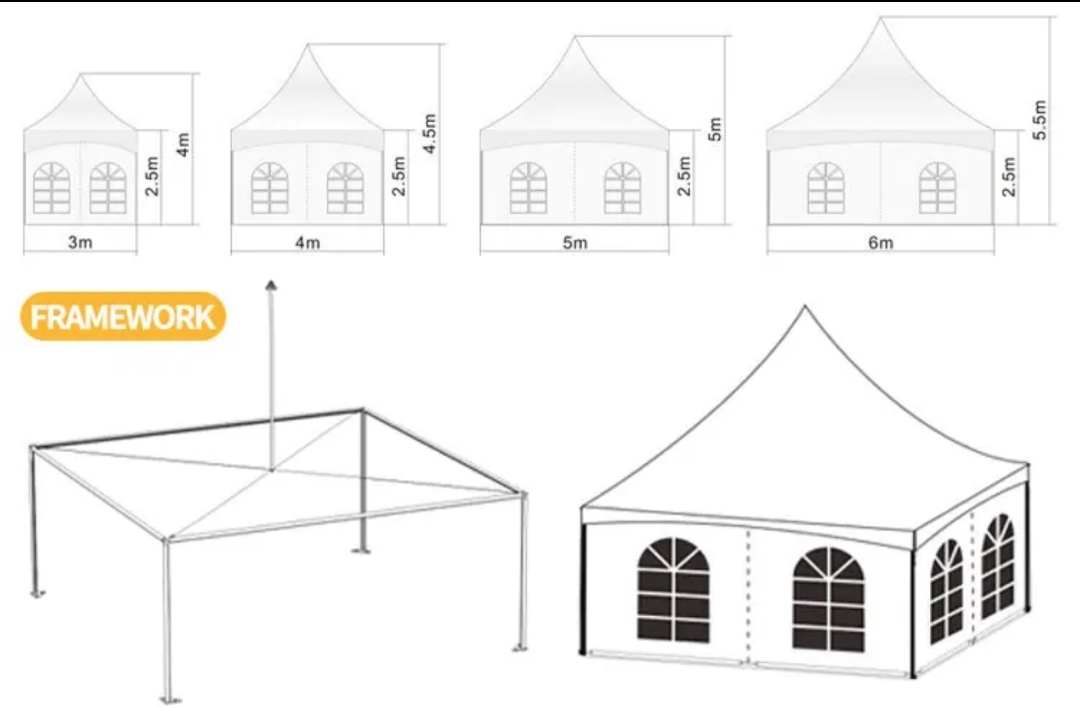

Dimension Available
Professional Tent | Dimension
| Side height (m) | Peak height (m) | Main frame Profile (mm)
| Wind Load (km/h)
| Snow Load (Kn/m2)
|
SPD3 | 3m x 3m | 2.5m | 4.2m | 65x65mm
| 80km/h
| 0.3KN/sqm
|
SPD4 | 4m x 4m
| 2.5m | 4.8m | 65x65mm
| 80km/h
| 0.3KN/sqm
|
MPD5
| 5m x 5m
| 2.5m | 5.2m | 65x65mm
| 80km/h
| 0.3KN/sqm
|
MPD6
| 6m x 6m
| 2.5m | 5.8m | 65x65mm
| 80km/h
| 0.3KN/sqm
|
LPD8 | 8m x 8m
| 2.5m/3m | 5.4m | 122x68mm | 100km/h
| 0.3KN/sqm
|
LPD10
| 10m x 10m
| 2.5m/3m | 6.4m
| 122x68mm | 100km/h
| 0.3KN/sqm
|

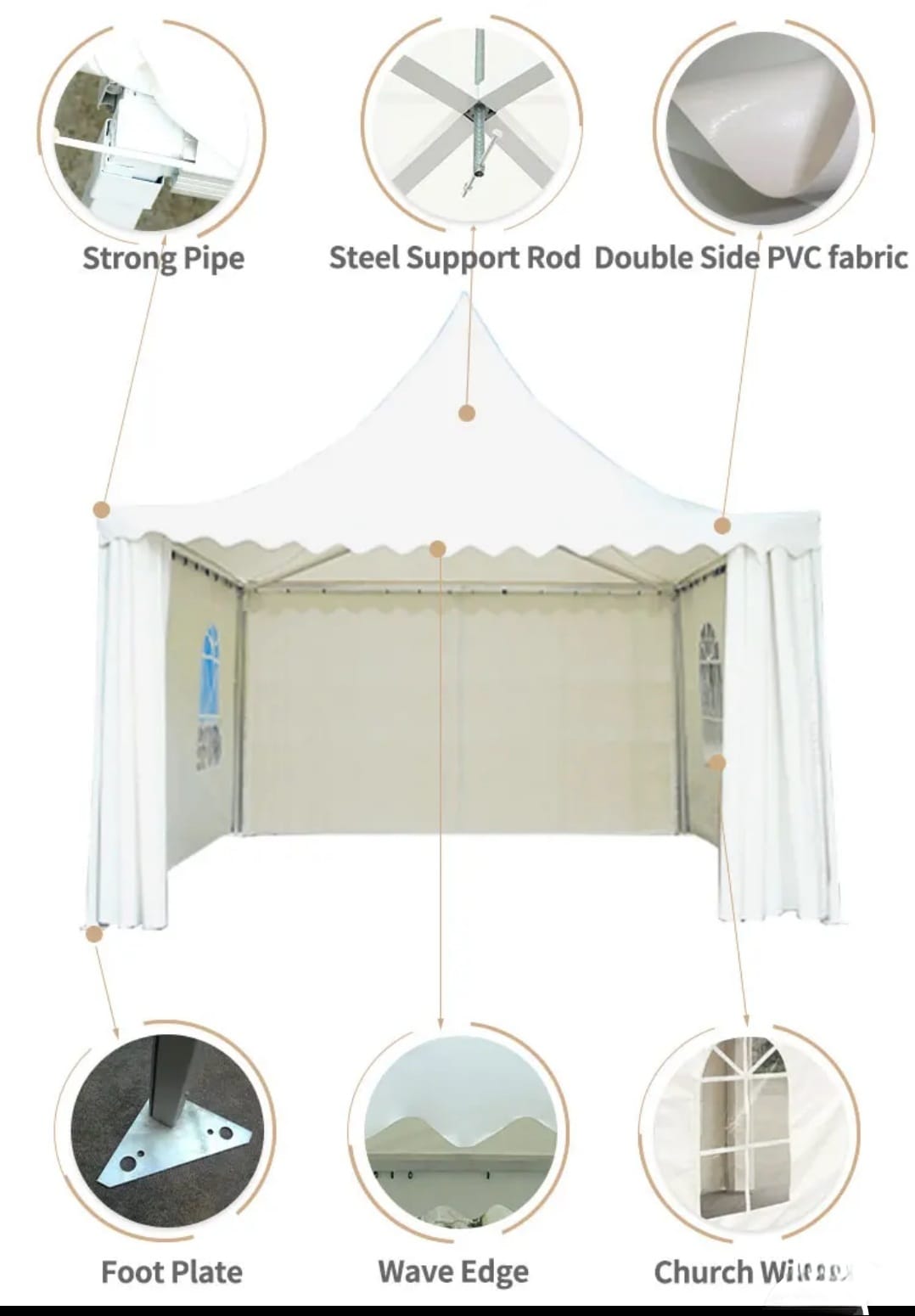

Material and Quality
| FRAME | Hard pressed anodized aluminum alloy 6061/T6 |

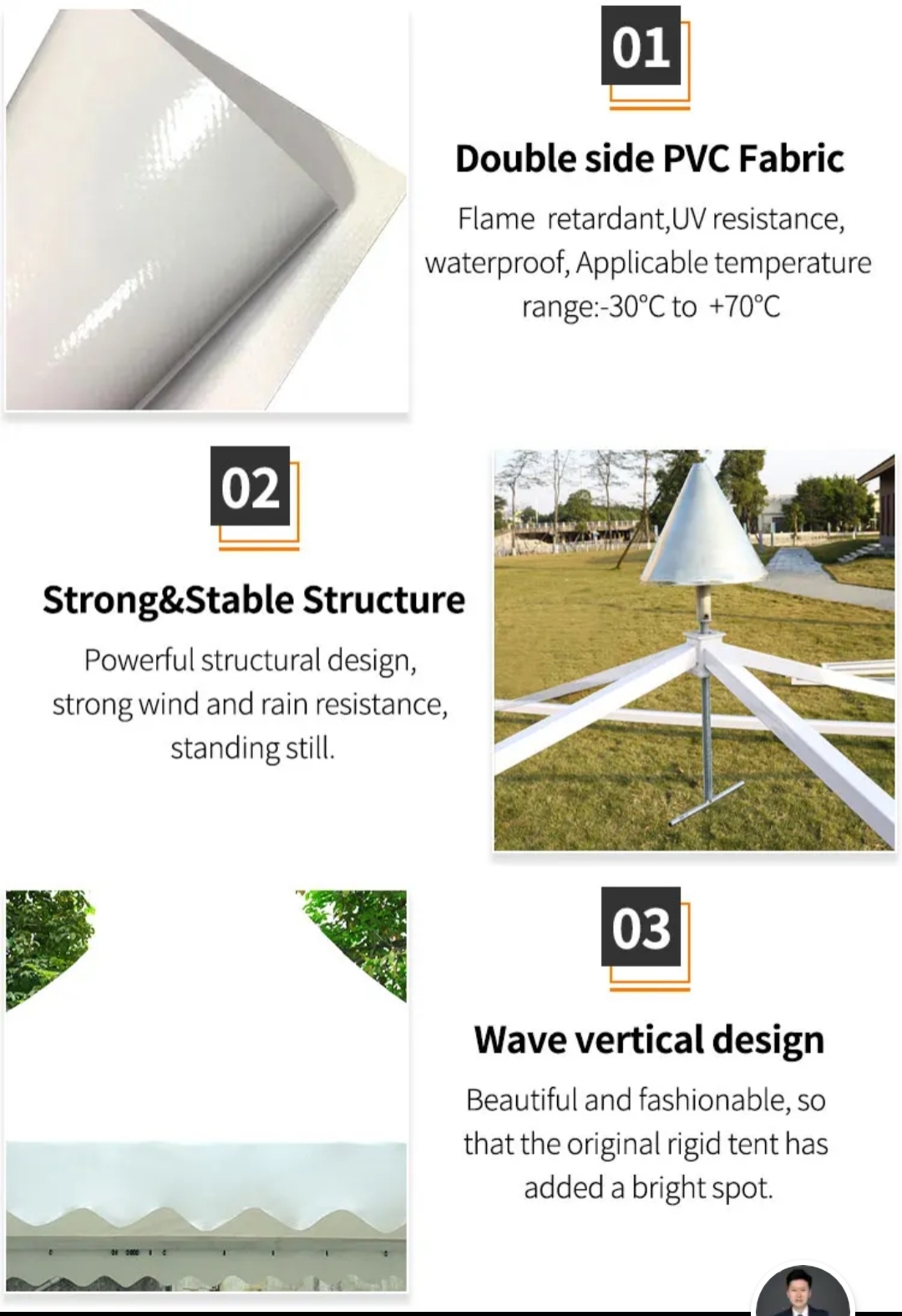

| ROOF COVER | 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
| SIDE WALL | 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall |
| CONNECTION | Hot Dipped Galvanized Steel Connector, Aluminum roof connection |
Optional Accessories
