Sports Tents
With the continuous changes of Moduling sports tent is the most flexible big tent structure, it has infinite possibilities, the span from 10 meters to 60 meters, every 3 meters or 5 meters per bay. Due to space limitations or requirements for sports events, the modular sports tent is the best choice for those event organizers sometimes need to build more than 30 meters span large tents, but sometimes need to build 10 meters or 20 meters in a small tent.
Since it’s flexible, moduling sports tent can meet the different requirements of a variety of large and small sporting events, whether it is used as an indoor football stadium, swimming pool, ice rink, tennis court, or as security, restaurant, lounge .
Furthermore, the moduling sports tent can provide a variety of sizes, we also provide many different option of flooring. There are many diffenences in appearance, the A shape roofing, multi-arched, peach, arch and double decker and more. There is no doubt that in the next few years, more and more events will use  moduling sports tent.

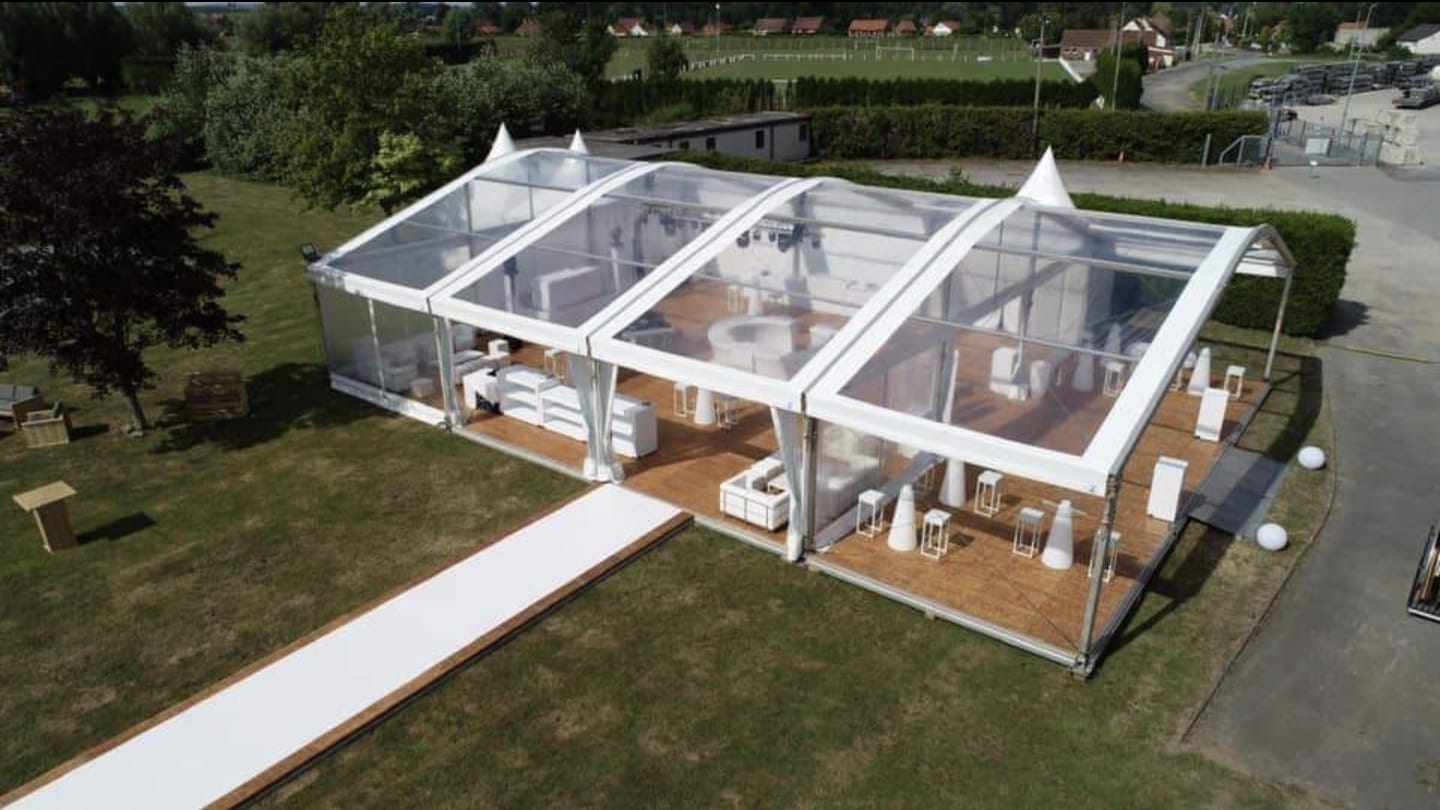

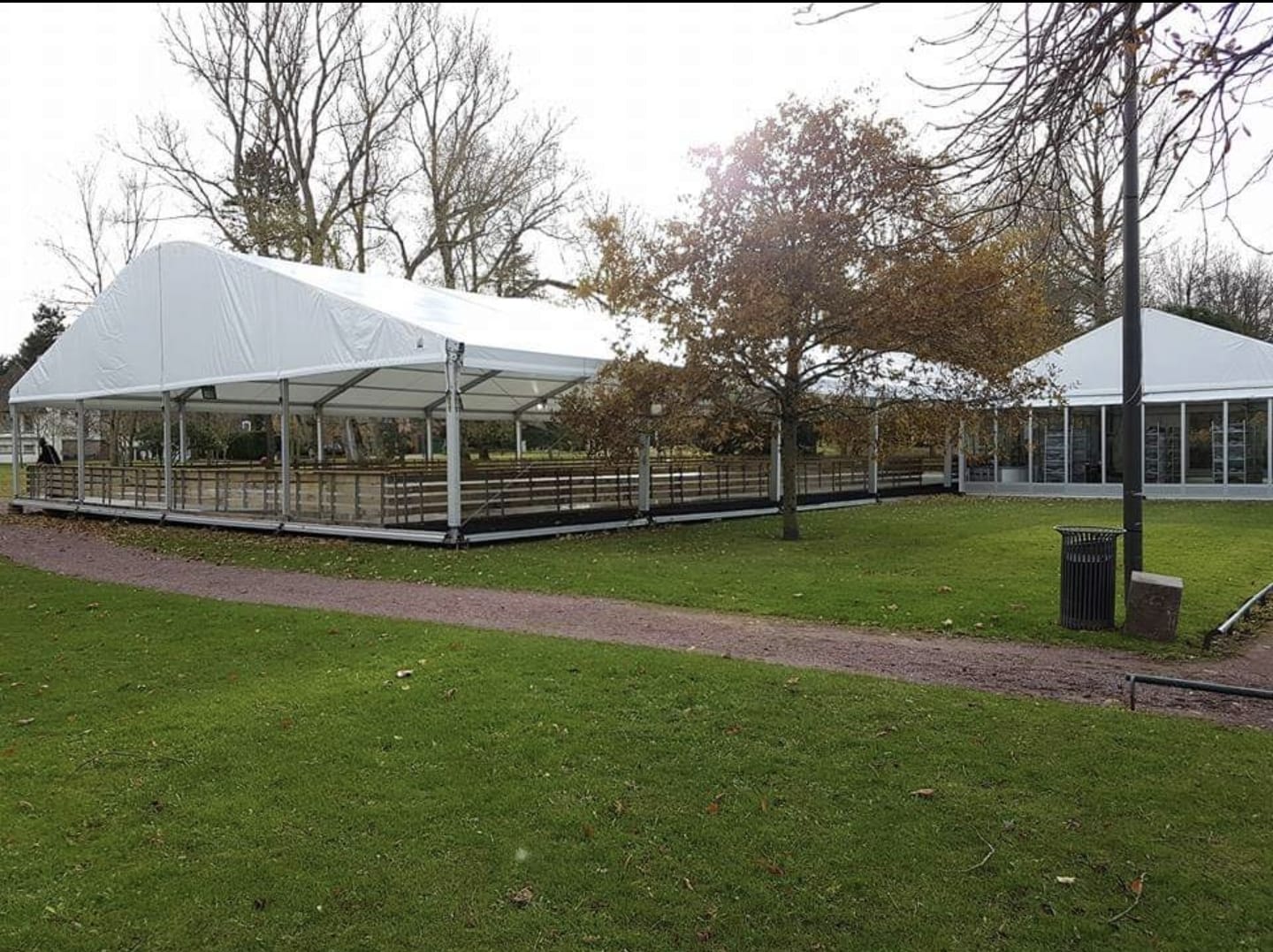

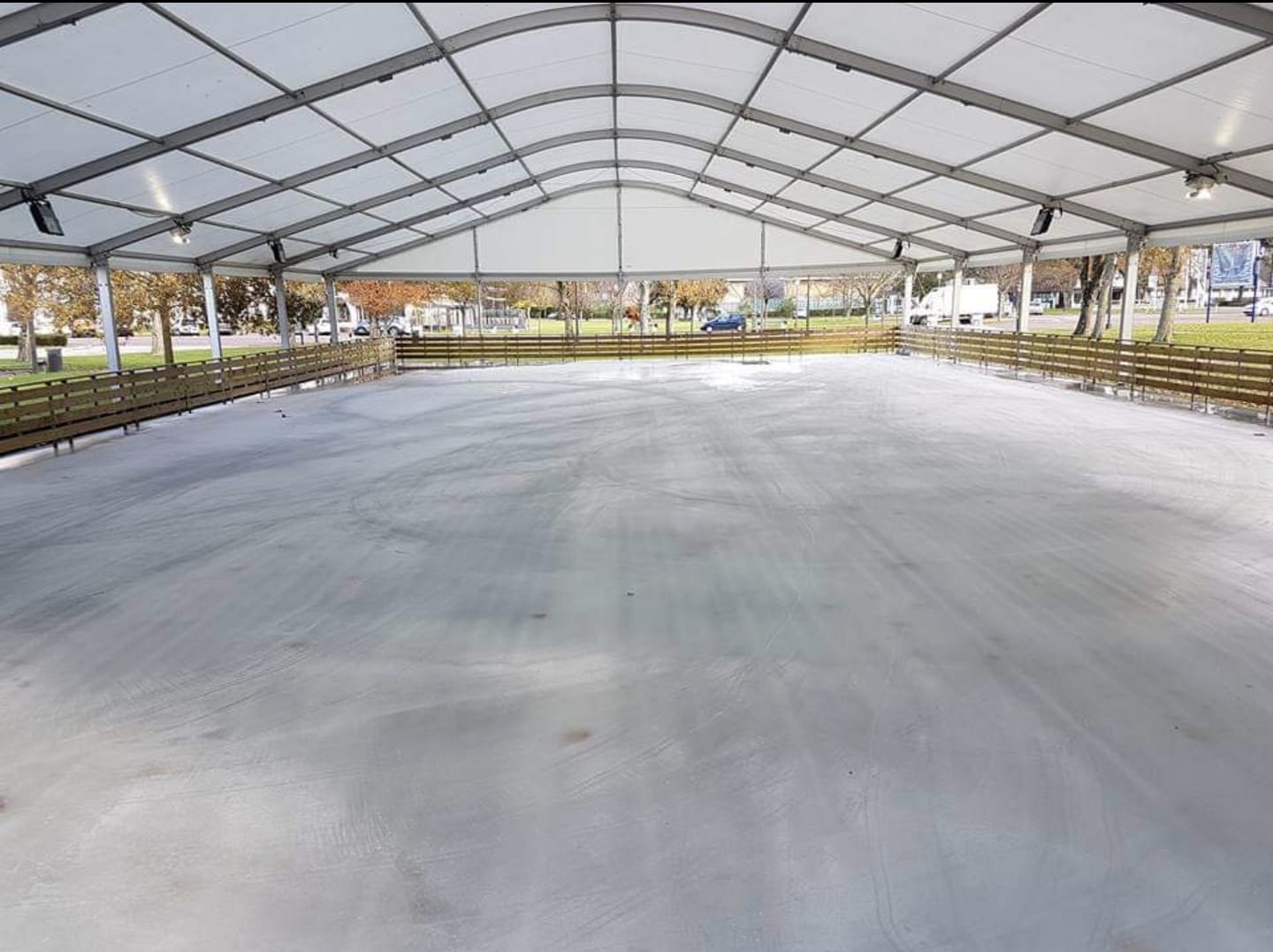

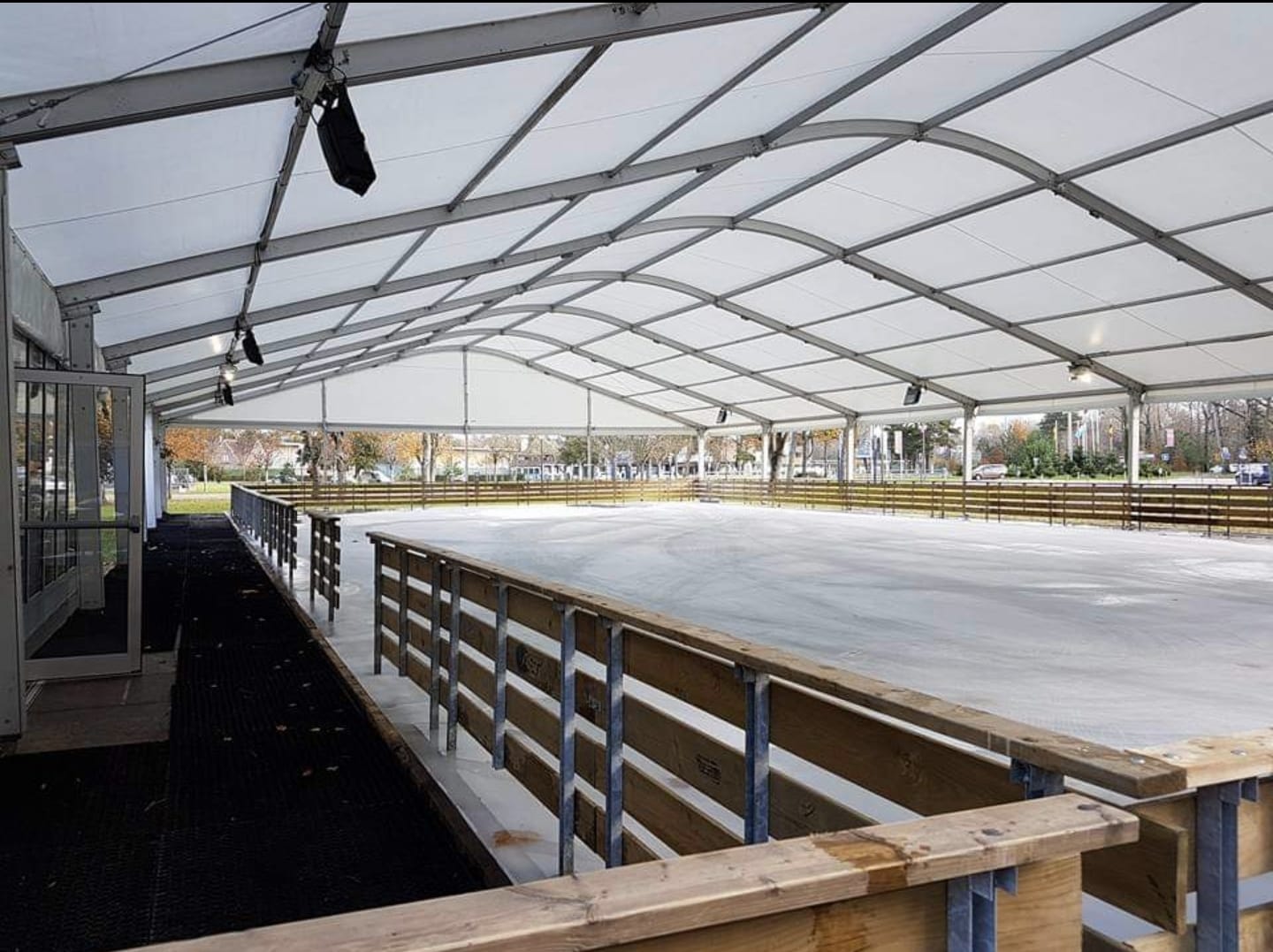

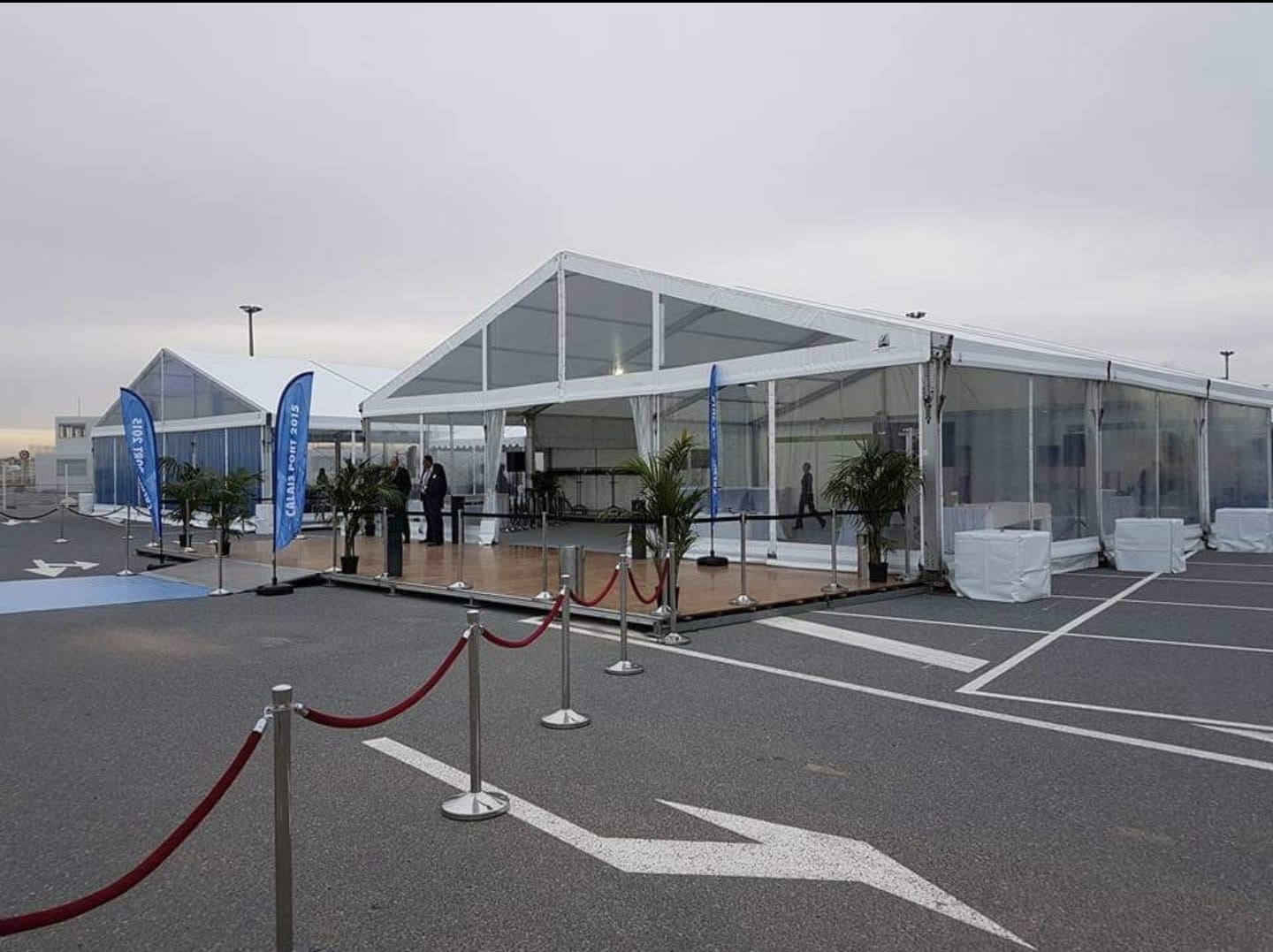

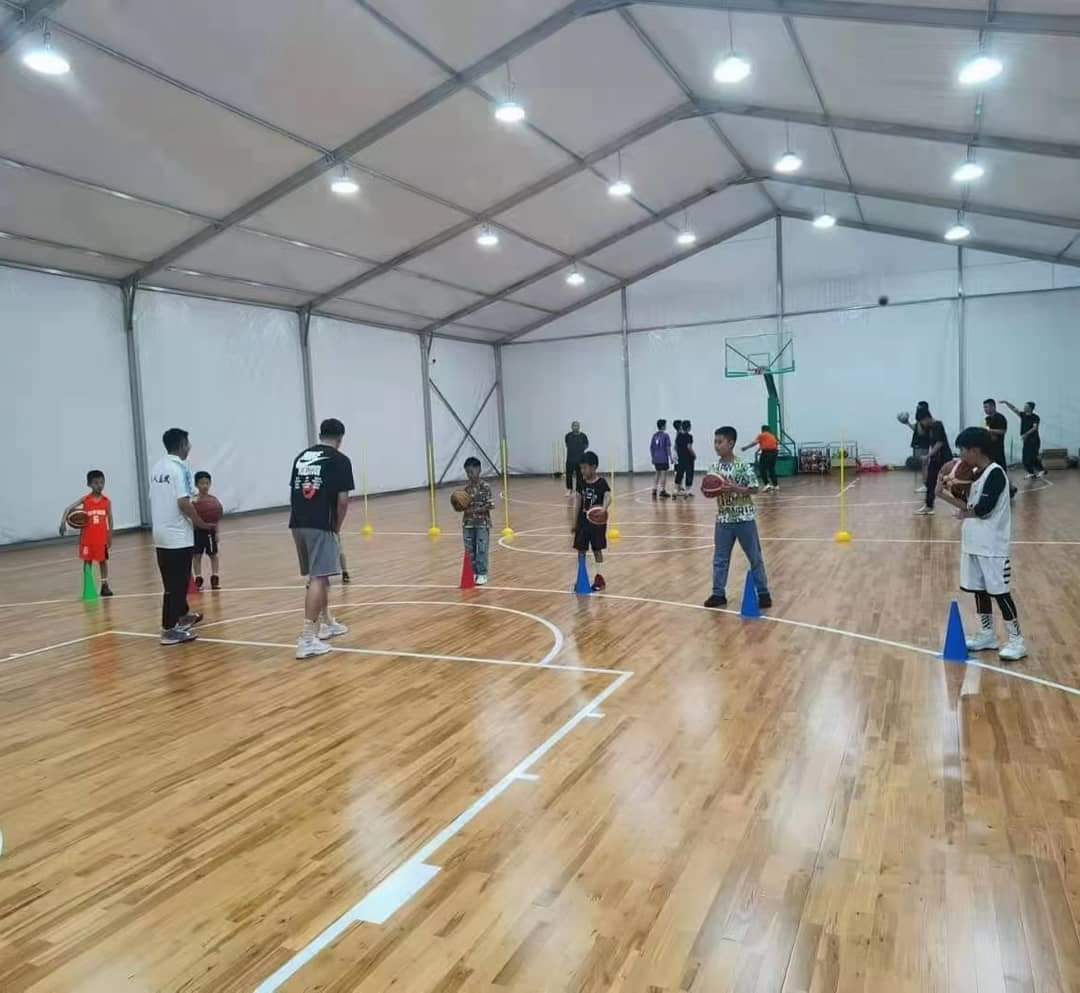

Application Case
Dimension Available
Professional Tent Item No.
| Dimension | Side height (m) | Peak height (m) | Main frame Profile (mm) | Wind Load (km/h) | Snow Load (Kn/m2) |
SPD3/2500 | 3m x 3m | 2.5m | 4.2m | 65x65mm | 80km/h | 0.3KN/sqm |
SPD4/2500 | 4m x 4m | 2.5m | 4.8m | 65x65mm | 80km/h | 0.3KN/sqm |
MPD5/2500 | 5m x 5m | 2.5m | 5.2m | 65x65mm | 80km/h | 0.3KN/sqm |
MPD6/2500 | 6m x 6m | 2.5m | 5.8m | 65x65mm | 80km/h | 0.3KN/sqm |
LPD8/2500 | 8m x 8m | 2.6m | 5.4m | 122x68mm | 100km/h | 0.3KN/sqm |
LPD10/2500 | 10m x 10m | 2.6m | 6.4m | 122x68mm | 100km/h | 0.3KN/sqm |
LPD15/2500 | 15m x 15m | 3m | 8.1m | 122x68mm | 100km/h | 0.3KN/sqm |
Material and Quality
| FRAME | Hard pressed anodized aluminum alloy 6061/T6 |
| ROOF COVER | 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
| SIDE WALL | 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall |
| CONNECTION | Hot Dipped Galvanized Steel Connector, Aluminum roof connection |
Optional Accessories
